Sd.Kfz.8 Schwere Zugkraftwagen 12t

German army vehicles Germany (1936-44) - Utility Half Track - 4,000 built

The Sonderkraftfahrzeug 8 ("special motorized vehicle 8") was a German half-track widely used during World War II, as a prime mover for heavy guns like the 21 cm Mörser 18 but also the the 15 cm Kanone 18 or the 10.5 cm FlaK 38. It was also used to carry their crews and ammunitions, but also as a standalone troop carrier. Circa 4,000 were produced, sterting in 1938 and until the end of the war. It was also used in every campaign of the Wehrmacht, from Invasion of Poland to the the Battle of France, Balkans Campaign, Africa, Eastern Front, Nrmandy and Italy.

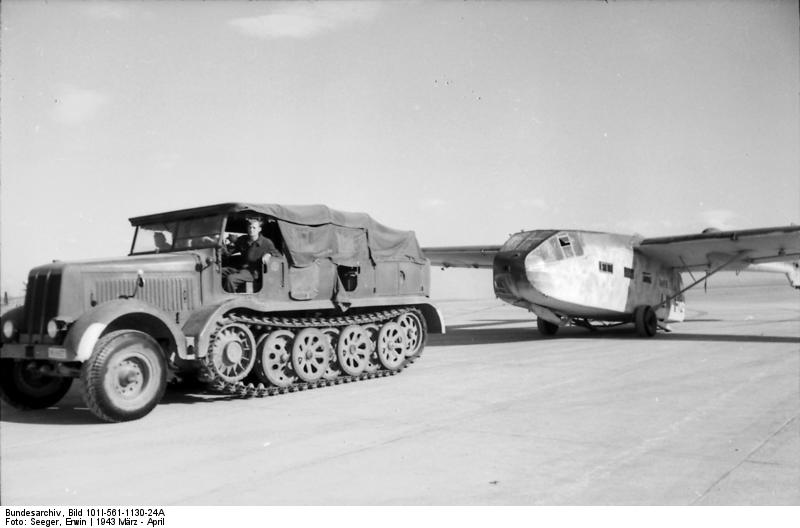

Sdkfz 8 towing a Gotha Go 242
Sdkfz 8 towing a Gotha Go 242

Design development

Well before a request came from the transportation bureau in 1932, already Dipl.Ing. Ernst Kniepkamp of the Military Automotive Department (Wa Prüf 6) started studies of a family of such vehicles, inspired by French and Russian examples. After the Nazis came to power in 1933, they decided to vote the construction of protoypes, which were turned to companies across Germany, quickstarting the true development and testing phase of several models. Daimler-Benz already started work on tits own half-track in 1931—32. It was called ZD.5. and weighed 9.3 tonnes, propelled by a Maybach twelve-cylinder capable of 150 horsepower (150 PS). This was the latest, powerful DSO 8 gasoline engine of the firm. Its upper body had three bench seats and the suspension called for the WW1 era Marienwagen II (so no interleaved roadwheels or torsion bars).

Daimler-Benz later was asked by Wa Prüf 6 to combined the best features of the DB s7 prototype of 1934 with its ZD.5. The engine was from the ZD.5, two bench seats but a new upper body and wheeltrain as the S7. The technical solutions which resulted of this marriage funded the Sd.Kfz. 8 basic design, weighing 14.4 tonnes and now able of towing 12 tonnes. In 1936 it was further developed as an improved model called the DB s8. It now weighted 15 tonnes. The following DB 9 model came in 1938 with a mire powerful Maybach HL85 TUKRM engine, a 0.8 tons payload (1,800 lb), same towing capacity and weight. Daimler-Benz tried to place their diesel OM 48/1 but it was rejected by the Waffenamt (Army Weapons Office). The final DB 10 was a second production version introduced in October 1939, which became the focus of wartime production until 1945.

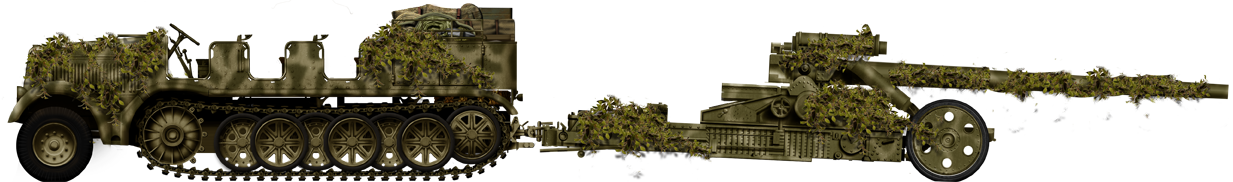

Sd.Kfz.8 DB10 in Italy, summer 1944 (gothic line) towing a 21 cm Mörser 18.

Design

The Sd.Kfz. 8 used a ladder frame chassis, and was powered by a Maybach 12-cylinder HL 85 TUKRM gasoline which was water-cooled at 8.52 litre (520 cu in). It developed 185 horsepower (188 PS) and was coupled with a semi-automatic ZF transmission, with four forward and one reverse gears. The driver selected his gear, initiating it by depressing the clutch. Both tracks and wheels were used for steering and its system allowed shallow turns using only the wheels. Like in a tank however, brakes could be applied to the tracks, accompanying the wheels when turned. The drive sprocket had rollers rather than the teeth, but that was often the case on German half tracks. The rear suspension comprised six double roadwheels, overlapping and interleaved (Schachtellaufwerk), also usual, but mounted on swing arms, sprung by torsion bars instead, robably because of the heavy duty nature of the vehicle. It also had an idler wheel at the rear, used as track tensioner. The front wheels on their side, were given classic leaf springs but completed by shock absorbers.

The upper body comprised three bench seats. The forward one hosted the driver and his assistant and another free guest, two others for the crew of six, generally a gun battery, so 11 personal (a squad) plus the driver and assistant. The rear cargo area also contained storage compartments. They were placed in the separator benches with traps on both sides, and there were two more in the rear of the chassis. The windshield as customary was foldable, to enchance visibility and a large canvas mounted above the rear storage compartment, fastened to the windshield top when erected. This compartment was roomy enough to store an utility payload above, including the folded tarpaulin. When used as artillery towing vehicle, rounds were stored in the aft compartment below, with one large two-flap access trap on either side and two single flap at the back so that they could be easily accessed at all time.

The Sd.Kfz. 8 was given a base towing capacity of 12 tonnes but the wartime production DB 10 version was able to tow up to 14 tonnes, making it able of towing large planes like bombers and gliders. The vehicle also came with two fuel tanks, one of 40 litres (11 US gal) and the other of 210 litres (55 US gal) so 250 l (55 imp gal; 66 US gal) in total for an operational range of 250 km (160 mi) on road and 125 km (78 mi) cross-country. This was a large and relatively slow vehicle, but suited to its role as heavy artillery towing vehicle.

Variants

8.8 cm Flak 18 "Bufla" Tank Hunter

Ten 8.8 cm Flak 18 ausf Sd.Kfz 8 or "8.8 cm Flak 18 (Sfl.) auf Zugkraftwagen 12t (Sd.Kfz. 8)" were produced. The guns were mounted on pedestals, based on older chassis, of the DB s8 and DB 9, in 1939. It was more familiar under the name "Bunkerflak" or "Bufla" an early tank hunter deployed with a gun shield. The gun crew however had little protection. The driver's cab was replaced by a lower armored cupola and the engine compartment was protected by a 14.5 millimetres (0.57 in) frontal armor. At 20 tonnes and 7.35 metres long, it was impressive, nothwistanding the gun carried. Although it could fire ahead in general, traverse was limited to 151° on either side, to avoid the blast creating a cab concussion. Elevation was about -3° +15°. They went to the first company, Panzerjäger-Abteilung 8 taking part in the Invasion of Poland in 1939, France in 1940 and survived long enough for Operation Barbarossa in 1941. The Panzerjäger-Kompanie 601 in January 1942, third company, Panzerjäger-Bat. 559 in April it only had three vehicles left, lost for good in March 1943.

HK 1601

A completely revised version hich was an experimental attempt to create the "universal" towing half track, combining the SdKfz 8 and SdKfz 9, of 18 tonnes. It never came to fruition and was abandoned.

Schwerer Zugkraftwagen 12 to Daimler-Benz DB 10, gepanzert


One of these vehicles (possible abbrviation "SZwgn-12 DB10 Gpzt") in position with its 88 mm trailer seen behind. SRC

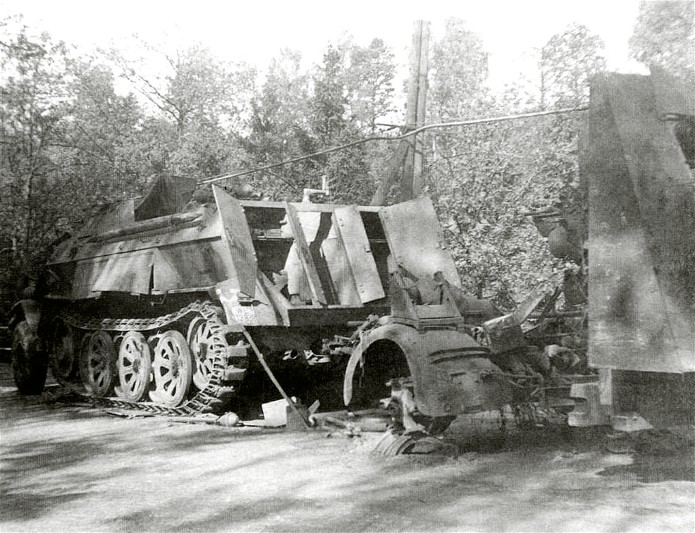

A rare armoured version of the Sd.Kfz 8, it was a fully armored artillery tractor. Its production is unknown, with estimated ranging from between 20 to 30 units. Compared to the Sd.Kfz 251 it was gargantuan, dwarfing it. It was an armored towing vehicle for the 88 mm FLAK trailer. The idea was to integrate "flying" artillery units that could be deployed fast on the battlefield, and protecting the crews underway. Only one survived, now in Poland at the Tomaszow Mazowiecki Museum. It will be the object of a dedicated article on tank encyclopedia.

Production and use

Daimler-Benz and Krupp, Krauss-Maffei and Škoda manufactured the type, the first two in much larger quantities, at an estimated unit price at the time of 46000 Reichmark. Krauss-Maffei produced 315 vehicles in 1940—41, Škoda abut that niumber in 1944-45. 1615 were available on 20 December 1942, 507 more delivered in 1943, 602 in 1944 and about 4000 in total. The Sd.Kfz. 8 was also operated by Romanian during the war and by Czechoslovakia after the war. The Sd.Kfz. 8 was almost always used as a tractor for heavy artillery pieces and apart the "Bufla" it was too useful to be declined into mutiple variants. In 1942, four Sd.Kfz. 8 were connected together as a giant trailer for the 30.5 cm gun barrel (Batterie Mirus).

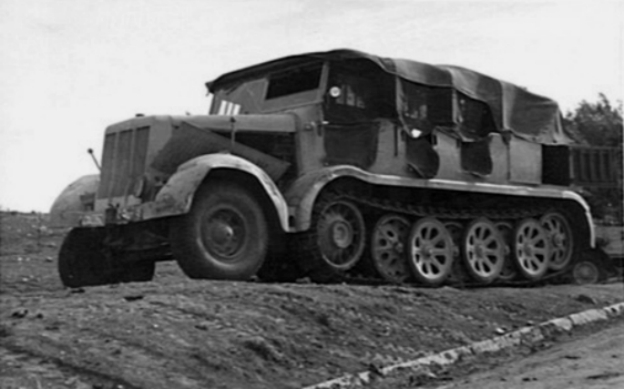

SdKfz 8 in Libya, 1941

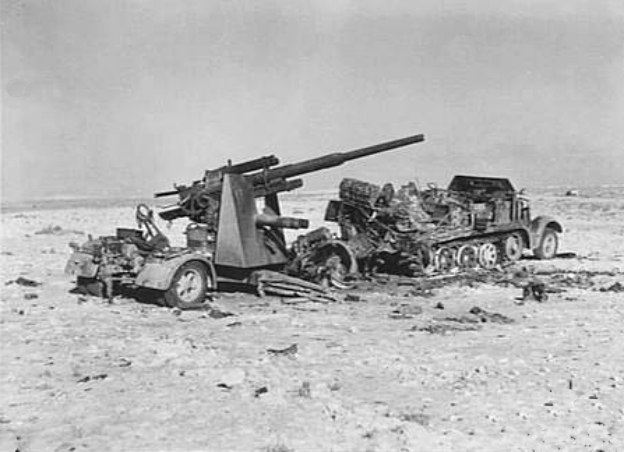

Burnt out Sd.Kfz.8 and 88 mm off El Alamein, 1942


Bundesarchiv - SdKfz8 towing a tractor out of a Me 323 Gigant in Tunisia, early 1943


SdKfz.8 towing a 88 mm FLAK on trailer in the Balkans February 1944

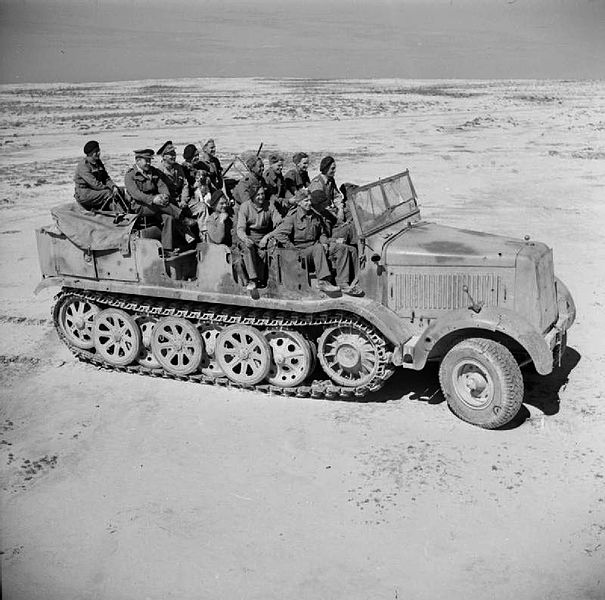

Captured Sdkfz 8 by British troops in Africa being tested, 1943

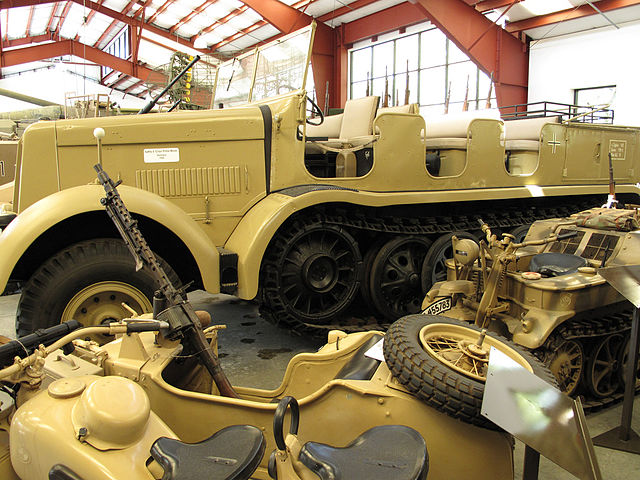

preserved Sd.Kfz.8 in Kubinka Museum

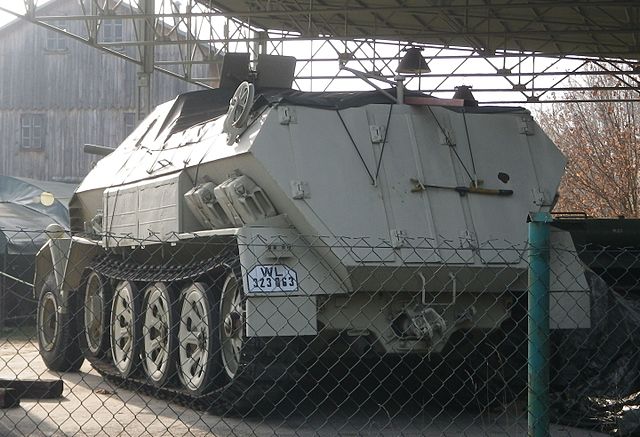

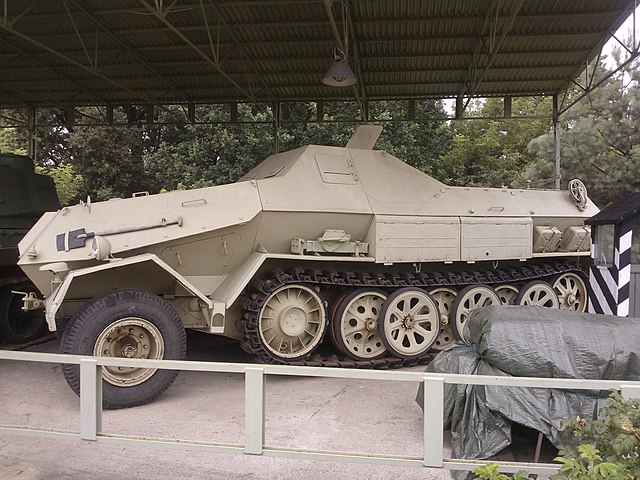

Preserved Sd.Kfz.8 Gepanzert in Czechoslovakia


Same, rear view

Links about the Sd.Kfz.8

The Flak 18 auf Sd.Kfz.8 on Wikipedia
The Sd.Kfz.8 on wikipedia.com
On panzerserra
Commons
ww2 photos gallery
On forosegundaguerra.com
On asphm
The Sd.Kfz.8 on perth mil. modelling

D.B. Sd.Kfz.8 specifications

Dimensions7.35 m (24 ft 1 in) x 2.5 m (8 ft 2 in) x 2.77 m (9 ft 1 in)
Total weight, battle ready14,700 kg (32,400 lb)
Crew2 (driver, co-driver) + 11 troops
PropulsionMaybach HL85 TUKRM 8.5L 12-cyl. water-cooled petrol 185 hp
Top speed51/21 km/h (32/13 mph) road/off-road
Payload2,550 kg (5,620 lb)
Transmission & suspension4 + 1 speed ZF - torsion bar
Maximum range (on/off road)250/125 km (160/78 mi)
ArmamentNone, but the 8.8 cm FLAK variant
Armor6 to 8 mm (0.2-0.3 in)
ProductionDaimler-Benz, Krupp, Krauss-Maffei, Škoda 1937–1944 - 46000 Reichmark

Gallery

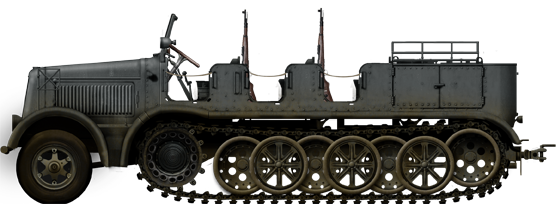

standard dunkelgrau, Poland 1939
Sd.Kfz.8 DB8, standard dunkelgrau, Poland 1939

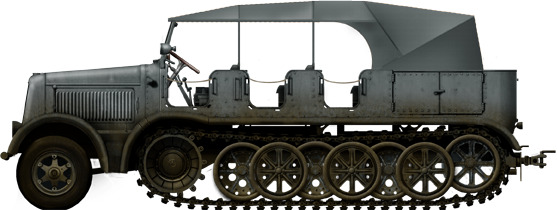

DB9, standard dunkelgrau, France 1940
Sd.Kfz.8 DB9, standard dunkelgrau, France 1940

DB9 in north Africa, 1941
Sd.Kfz.8 DB9 in north Africa, 1941

DB9 Operation Barabarossa 1941
Sd.Kfz.8 DB9 Operation Barabarossa 1941

DB9, eastern front, Spring 1942
Sd.Kfz.8 DB9, eastern front, Spring 1942

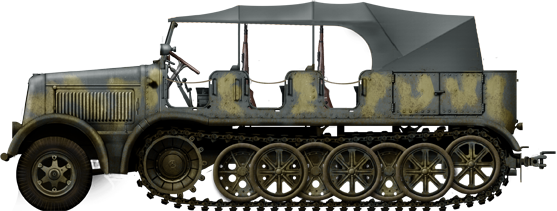

DB9, 1942
Sd.Kfz.8 DB9 in the eastern front, 1942

Kharkov, winter 1942-43
Sd.Kfz.8 DB9, Kharkov, winter 1942-43

DB9, Russia 1943
Sd.Kfz.8 DB9, Russia 1943

DB9 in Russia, 194
Sd.Kfz.8 DB9 in Russia, 1941

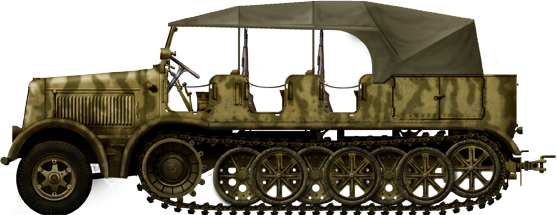

DB9, Russia 1943
Sd.Kfz.8 DB9, Russia 1943

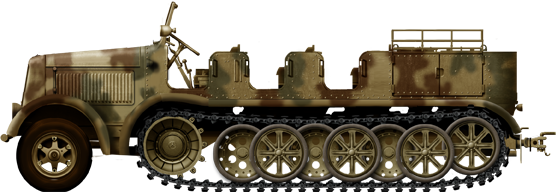

DB9 in Normandy, summer 1944
Sd.Kfz.8 DB9 in Normandy, summer 1944

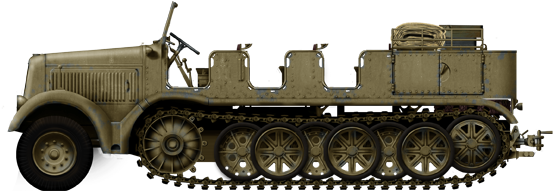

DB10 Afrika Korps, Tunisia
Sd.Kfz.8 DB10 Afrika Korps, Tunisia spring 1943


Sd.Kfz.8 DB10 in Italy, 1944

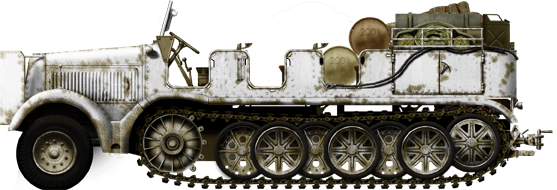

Sd.Kfz.8 DB10 eastern front 1944/45. The vehicle was armored by a front plate and another on the windshield with side flaps. It was towing a 88 mm FLAK trailer.

Bunkerflak

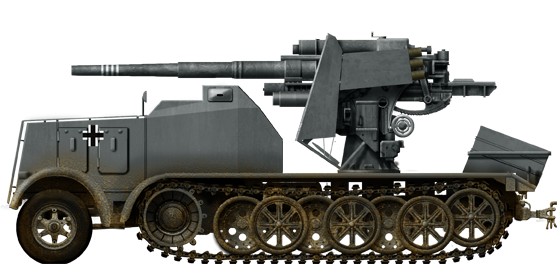

8.8cm Flak 18(Sf.) auf Schwere Zugkraftwagen 12t (Sd.Kfz.8). Only ten were so converted.

Video

The SdKfz 8 at Militracks in Belgium, showing the beast it was.
